Open Neuroscience Infrastructure for Intracranial EEG

A toolbelt, not one solution — and an invitation to help bridge academia and the clinic

Yaroslav O. Halchenko @yarikoptic @yarikoptic@fosstodon.org	Cody Baker cody.c.baker.phd@gmail.com ORCID 0000-0002-0829-4790
Center for Open Neuroscience Department of Psychological and Brain Sciences Center for Cognitive Neuroscience Dartmouth College, New Hampshire, USA

Dartmouth/DH Human Intracranial Electrophysiology Consortium — October 9th, 2026
Live slides/Sources: https://datasets.datalad.org/centerforopenneuroscience/talks/2026-dhmc-ieeg.html

Before we start

What does your pipeline look like today?

acquisition → preprocessing → analysis → sharing (or not)

(~5 min — we'll shape the rest of the talk around what you tell us)

One toolbelt, not one solution

"Many sizes fit all" — no single tool or standard solves everything
You don't have to "buy in 100%" — pieces compose, and are useful alone
Everything today is a pointer: a name, a URL, a reason to look closer — not a deep technical tutorial

Where this is going

Two worlds that talk past each other — and a group sitting exactly in the middle

graph LR
  A[Academia / open neuroscience] -. weak .-> B(DHMC iEEG group - already here) -. weak .-> C[Clinic / hardware / vendors]
  classDef aca fill:#dff0d8,stroke:#3c763d;
  classDef bridge fill:#fcf8e3,stroke:#8a6d3b;
  classDef clin fill:#d9edf7,stroke:#31708f;
  class A aca
  class B bridge
  class C clin

BIDS / HED, NWB, DataLad,
OpenNeuro / NEMAR / DANDI

DICOM WG-16 ↔ BIDS, neuroconv, OBC (consent)

Natus / Blackrock / Ripple /
Nihon Kohden / Medtronic, DICOM, PACS, EHR/EMR

Carrots, not (only) sticks

Figure from M. Hanke, "Carrots! Not sticks!" hedgedoc.psychoinformatics.de/p/gBE63_ytiE

What pulls people toward standards

Carrots — the standards themselves: free tools, free archive storage, "someone else already solved this", collaborators who can actually read your data
Sticks exist too — mostly from funders and journals: NIH Data Management & Sharing Policy, journal data-availability requirements
Our pitch today is almost entirely carrots — the stick is already pulling on everyone; we're here to make the carrot side concrete

## Standards as an enabler for tooling

"Cool stuff (visualization, turnkey apps) is possible only because of boring stuff (standards)"

----

### Why do we need standards?

> Researcher A collects data, publishes a paper. Researcher B requests the data.
> The data arrive — organized however Researcher A felt like organizing them.
> Researcher B gives up.

<small>adapted from Rokem/Gau/Halchenko, <code>202404xx-NSF-POSE-BIDS</code></small>

----

### BIDS: Brain Imaging Data Structure

<small>
  <a href="https://www.nature.com/articles/sdata201644">Gorgolewski, K. J. et al. (incl. <b>Halchenko, Y. O.</b>) (2016).
  The brain imaging data structure... Scientific Data, 3:160044</a>
</small>

- a standard for organizing and describing neuroscience data
- a set of tools and services that use it (validators, BIDS-Apps, PyBIDS, ...)
- a community that develops, maintains, and extends it — **200,000+ individuals'** data stored in BIDS today

----

### Modular, like separating pasta ingredients from the dish

- **sourcedata/** — raw ingredients, kept as-is
- **derivatives/** — each processing pipeline's output, separate and swappable
- "you've seen one BIDS dataset, you've seen them all" — `sub-<label>/[ses-<label>/]<datatype>/`

<small>analogy via Rémi Gau, <a href="https://doi.org/10.5281/zenodo.5863713">10.5281/zenodo.5863713</a></small>

----

### iEEG is a first-class BIDS citizen

- **BEP010** — intracranial EEG extension
  (<a href="https://doi.org/10.1038/s41597-019-0105-7">Holdgraf et al., Scientific Data, 2019</a>)
- `channels.tsv` — per-channel metadata (type, sampling frequency, status)
- `electrodes.tsv` — electrode coordinates; clarified **REQUIRED** for iEEG in
  <a href="https://github.com/bids-standard/bids-specification/pull/1896">bids-specification PR#1896</a> (v1.10.1)
- **HED** (Hierarchical Event Descriptor) tags for event annotation — see NEMAR, next section

----

### Inheritance: don't repeat 320 JSON files

40 subjects × 2 sessions × 4 runs = 320 files to edit? No —
one `task-xyz_ieeg.json` at the dataset root covers all of them unless overridden.

NWB: one file format for all modalities + metadata

neuroconv.readthedocs.io

Neurosift: stream, don't download

Browser-based NWB viewer — no download required, works directly against DANDI
Open-source
New event-related signals view: align any time series to any column of a trials/intervals table, pick channels, group trials by a condition

One known iEEG NWB example on DANDI: ds008610 (LFP only) — TODO: find/convert a second example with spectrograms if one exists.

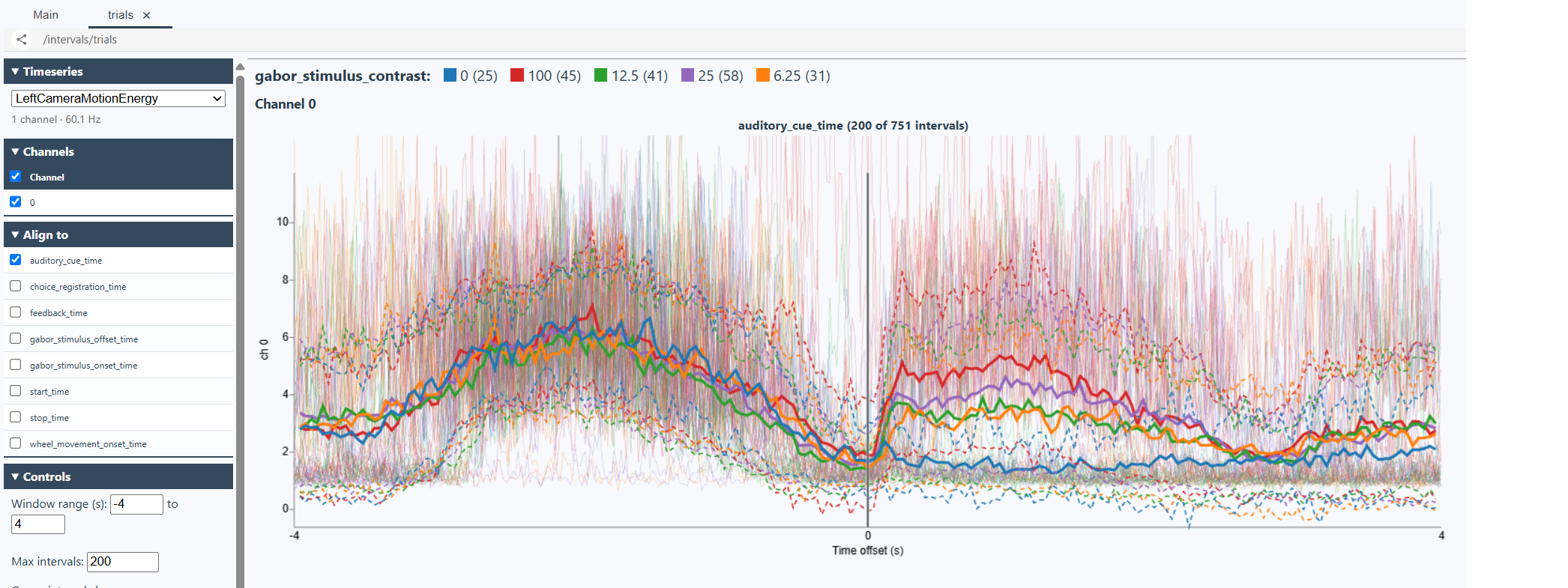

Example 1: behavior, grouped by condition

Camera motion energy, aligned to auditory_cue_time, grouped by gabor_stimulus_contrast — DANDI:000409

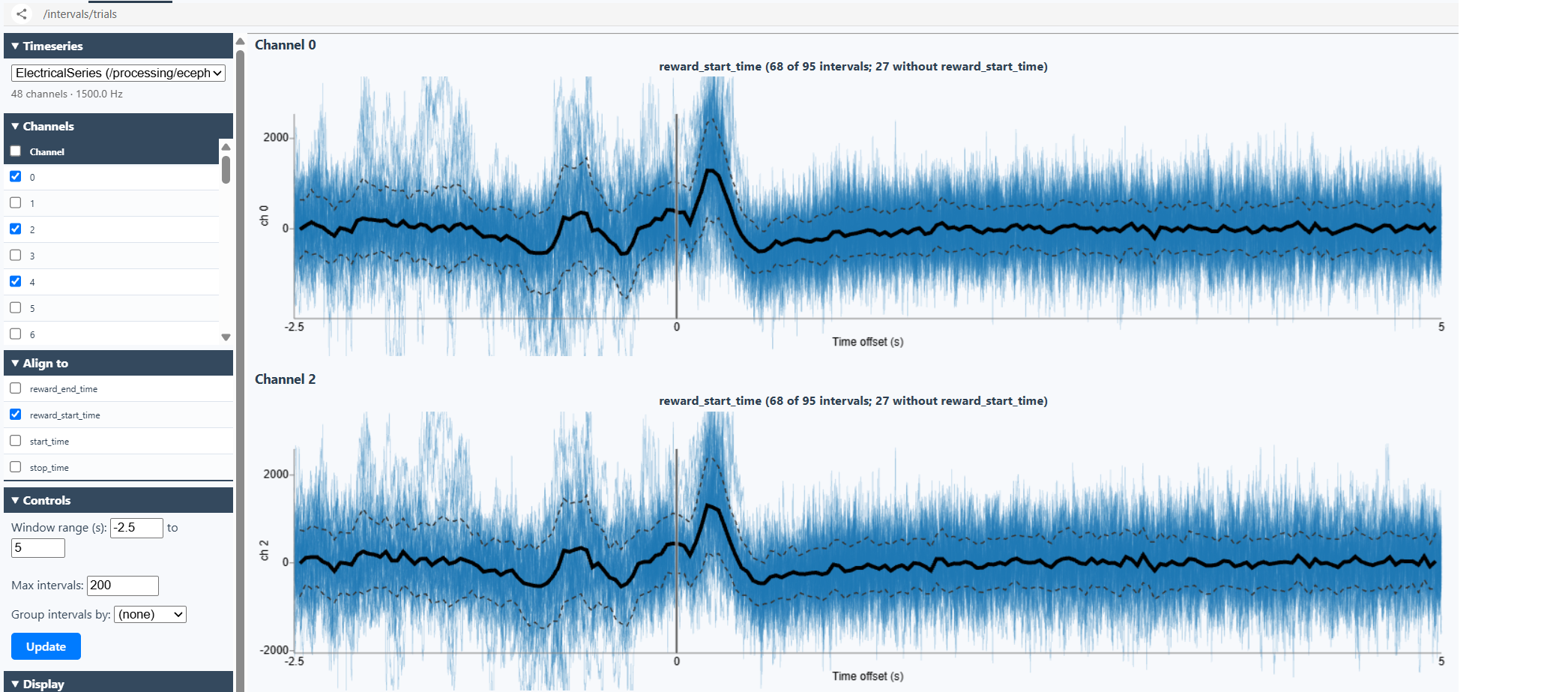

Example 2: LFP aligned to reward

LFP aligned to reward_start_time, channels 0, 2, 4 — DANDI:001539

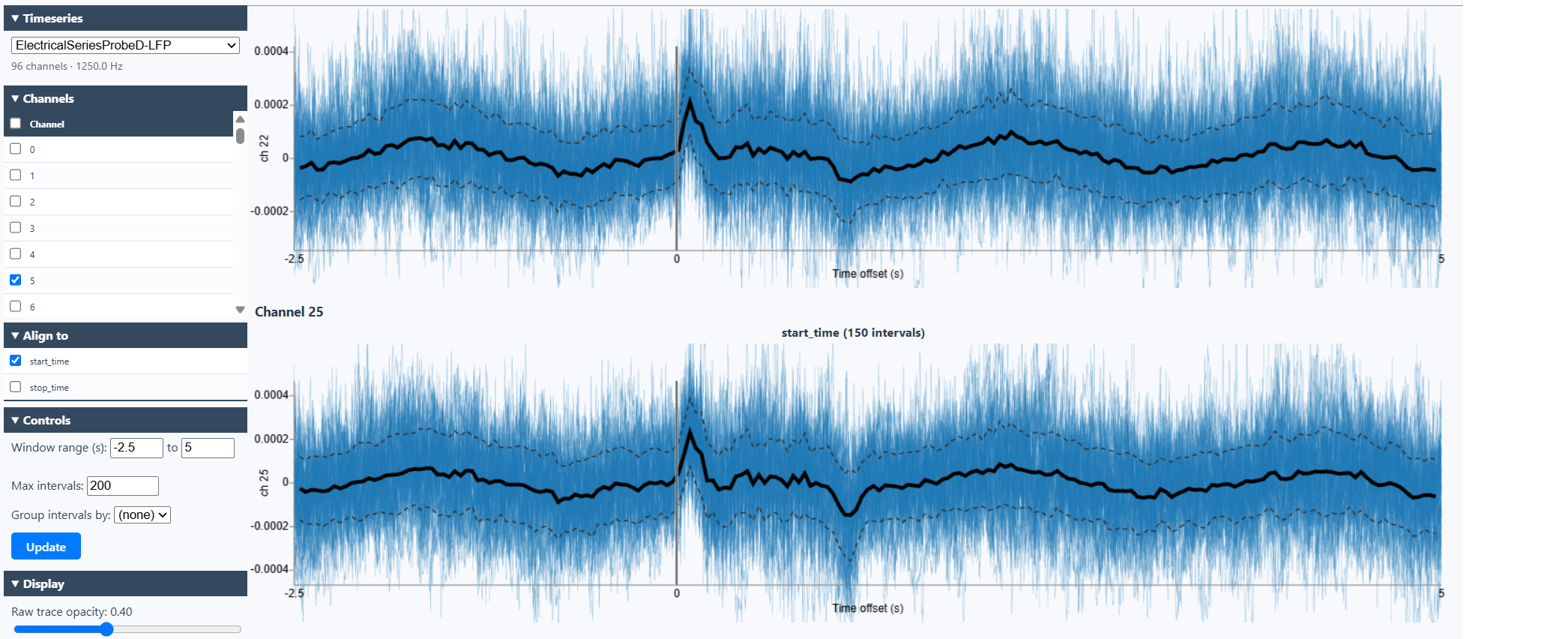

Example 3: LFP around stimulus presentations

40 Hz pulse-train presentations, probe D LFP, channels 5, 22, 25, 32 — DANDI:001637

## Archives: free backup, open by design

----

### NEMAR — Neuroelectromagnetic Data Archive and Tools Resource

[nemar.org](https://nemar.org) — SCCN + SDSC, UC San Diego (NIH/NIMH R24MH120037)

----

### NEMAR, verified facts (as of 2026-10-05)

- Covers **EEG, MEG, iEEG, EMG** — iEEG is first-class, not an afterthought
- Auto-mirrors new public OpenNeuro EEG/MEG/iEEG datasets within ~24h, BIDS-formatted
- **762 datasets, ~40K participants, 59.2 TB** hosted today
- Built-in **HED** annotation support + search/filter by HED coverage
- Compute bridge to SDSC / Neuroscience Gateway — analyze without downloading
- An experimental "NEMAR Assistant" chatbot answers questions and plots recordings
  (general-purpose today, not a dedicated HED-annotation generator —
  that piece is still aspirational)

----

### DANDI — the broader NWB-centric archive

[dandiarchive.org](https://dandiarchive.org) — also hosts iEEG data in NWB form (see ds008610 above)

----

### EMBER — new since your notes were written

Official BRAIN Initiative archive for the **BBQS** program (JHU/APL-led, with **Dartmouth/CON**),
live since 2024, built on DANDI infrastructure. [emberarchive.org](https://emberarchive.org)

## RDM: Data Management

----

### `datalad run` — version control for outcomes, not just code

```
datalad run -m "run preprocessing" \
  "python preprocess.py {inputs} {outputs}"
```

- captures exact command, inputs, outputs, environment as a git commit
- `datalad rerun` replays it later, on different data, to check it still works
- works over arbitrarily large (binary) data via `git-annex`

----

### STAMPED — one slide

**S**elf-contained, **T**racked, **A**ctionable, **M**odular, **P**ortable, **E**phemeral, **D**istributable

<small><a href="https://stamped-principles.org/">stamped-principles.org</a> —
Macdonald, Baker, To, Halchenko (2026); Cody's deeper dive: BBQS workshop slides (<code>2026-bbqs-stamped</code>)</small>

----

### (Meta)BIDS-Study: self-containment + modularity together

<a href="https://github.com/OpenNeuroStudies/OpenNeuroStudies">OpenNeuroStudies</a> —
a dataset of datasets, each still independently valid BIDS

Compute: pointers only

ReproNim/containers — portable, versioned software environments
mechababs + BABS — STAMPED execution of BIDS-Apps at scale, DataLad-native, per-subject isolation
DANDI Compute — standardized processing of NWB data on DANDI (next slides)
TODO: "compute on Unity" — need one line from you/Austin; nothing in our existing materials mentions this

DANDI Compute

DANDI Compute: orchestration

DANDI Compute: the spike-sorting pipeline

DANDI Compute: the derivative it produces

## Visions for the future

----

### Mass preprocessed data, reused with confidence

- "Mass compute" (see mechababs) makes mass-preprocessing tractable
- Goal: future "meta-studies" / multiverse analyses that trust someone else's preprocessing
  because STAMPED provenance makes it checkable

----

### Knowledge bases: from local to global

<div style="display:flex;justify-content:space-around;align-items:flex-start;">
<div><img data-src="pics/borrowed/brainkb-webshot-20261006.png" style="width:440px;"/><br/>
  <small><a href="https://brainkb.org">BrainKB</a> — NIH-funded open neuroscience knowledge graph
  (BICAN, ReproNim, BBQS, Brain Connects)</small></div>
<div><img data-src="pics/borrowed/ebrains-kg-webshot-20261006.png" style="width:440px;"/><br/>
  <small><a href="https://ebrains.eu">EBRAINS Knowledge Graph</a> — EU openMINDS-based
  semantic metadata graph</small></div>
</div>

----

### ORINOCO / ORINOCO-Lite — our own tooling, not an external project

- `dump-things-service` — self-hostable LinkML-based structured-metadata store
- `ORINOCO-Lite` — GitHub-native deployments, already running for CON and
  Psychoinformatics group sites
- Local knowledge bases that could, in principle, federate upward into
  BrainKB / EBRAINS-scale graphs

All standards are "Bad"^*,
but some are used

* ref: D. Clunie, MICCAI 2017

Two widely-used standards which could cooperate more

BIDS (academia) and DICOM (clinic/vendors) — same underlying problem, different communities, thin collaboration today

see 2023-bids-dicom.html (BIDS 4 DICOM WG-16 talk) for the longer version of this argument

How could we collaborate on metadata that matters clinically?

Should individual labs channel requests to manufacturers one at a time, or could DICOM Working Groups (e.g. WG-16) help coordinate?
Proposition: a library of concrete DICOM↔BIDS/NWB conversions, per manufacturer and modality

You're already standing in the gap

This group runs clinical iEEG acquisition and does research analysis — both worlds, already, every day
That makes you natural informants for neuroconv format support, BEP010 edge cases, and DICOM↔BIDS/NWB conversion libraries
Ask: who else should be in that room? what hardware/format gaps have you hit that we should know about?

Acknowledgements

Collaborators & sources

Ariel Rokem, Rémi Gau — BIDS-101 slide material
Michael Hanke — "Carrots! Not sticks!" figure
Austin Macdonald — mechababs
SCCN/NEMAR, EMBER/BBQS, BrainKB, EBRAINS teams

Funders

Collaborators
